Customization | 宏庚興業 Hge

- Proteus
- (HG-PT / Germany)
- Restores and preserves the natural wood grain texture.
- Applications: Wall panels, ceilings, cabinets, doors.
- Diana
- (HG-DN / Japan)
- Highly durable with elasticity.
- Applications: Flooring, tabletops.
- Venus
- Venus (HG-VN / Germany)
- Silky-smooth texture.
- Applications: Walls, cabinetry, furniture.
- Aurora
- Aurora (HG-AR / Netherlands)
- Clear and fresh like morning dew
- Applications: Walls, floors, furniture, doors.
- Apollo
- (HG-AL / Japan)
- Tough as diamond, with a piano-gloss finish.
- Applications: Walls, furniture, doors.

HG UV-Resistant Water-Based Coating Panels

Coating Used: Sikkens Ultra-matt Coating from Akzo Nobel (Germany).
Compatible Substrates:
- Plywood thickness from 2.7mm to 18mm, length from 244cm to 360cm.
  Indonesian Bifenthrin-treated F1 plywood (meets CNS1349 section 6.4 for insect resistance).
- Calcium silicate board (SGS certified CNS14705 Class 1 flame-retardant).
- Flexible board (bendable), aluminum board, acrylic, MDF, PVC-faced board, non-woven fabric (with adhesive), balancing board, foam board, etc.
Topcoat meets SGS CNS7614 Class 1 flame-retardant.
Moisture resistance (5% H₂SO₄, 24hr at room temp) – CNS11607 compliant.
Acid resistance (5% Na₂CO₃, 24hr at room temp) – CNS10757 compliant.
Alkali resistance – CNS10757 compliant.
Weather resistance – Passed ASTM G154-12a (UV exposure 200 hours).
Mold resistance – Passed ASTM G21-96 (2002), resistant to common mold strains:
Aspergillus niger, Penicillium pinophilium, Chaetomium globosum,
Aureobasidium pullulans, Gliocladium virens.
Volatile Organic Compounds (TVOC): ≤ 0.0050 mg/m²/hr (ASTM D5116 & ABRI, MOIS901014).
Formaldehyde Emission: ≤ 0.0050 mg/m²/hr (ISO16000-9 & ISO16000-3).
Below detection limit (CNS9538, spectrophotometer).
Heavy Metals: No detectable levels of Pb, Sb, As, Ba, Cd, Cr, Hg, Se (ASTM F963-11 using ICP-AES analysis).

Sikkens Water-Based Coating vs. UV Coating Comparison Table

Coating Comparison	Sikkens Water-Based Coating	UV Coating
Environmental Friendliness	Excellent, eco-friendly, non-toxic, low odor	Poor/raw materials have pungent odor, may leave trace unreacted monomers
Drying Method	Infrared	Requires specialized UV curing equipment
Drying Time	Recoat after 2 hours with sanding	5~15 seconds; cannot dry without UV curing equipment
On-Site Application	Suitable for on-site use, repainting, and DIY; no pungent odor; safe for inhabited spaces	Cannot be applied on-site; requires professional UV curing
On-Site Repairability	Easy to repair	Not repairable
Durability	Excellent; easy DIY repair of surface damage	Excellent, but cannot repair surface damage
National Environmental Certification	Complies with Germany RAL-UZ12 (Blue Angel) eco-label standards	None
National Safety Certification	Complies with EU (EC) No.1907/2006 (REACH) Complies with EU DIN EN 71-3 (safety of toys)	None
Safety	Excellent (non-toxic, non-flammable)	Poor/raw materials have pungent odor, may irritate skin, and leave trace unreacted monomers
UV Resistance (Anti-Yellowing)	Excellent, non-yellowing	Prone to yellowing
Scratch Resistance	Excellent	Excellent
Hardness (Pencil Test)	1H	1H~3H
Others	Softer wood coating feel, with natural texture	Coating layer is relatively hard and brittle; visual appearance is stiff, unnatural

Paint Test - 1 Month Outdoor Exposure

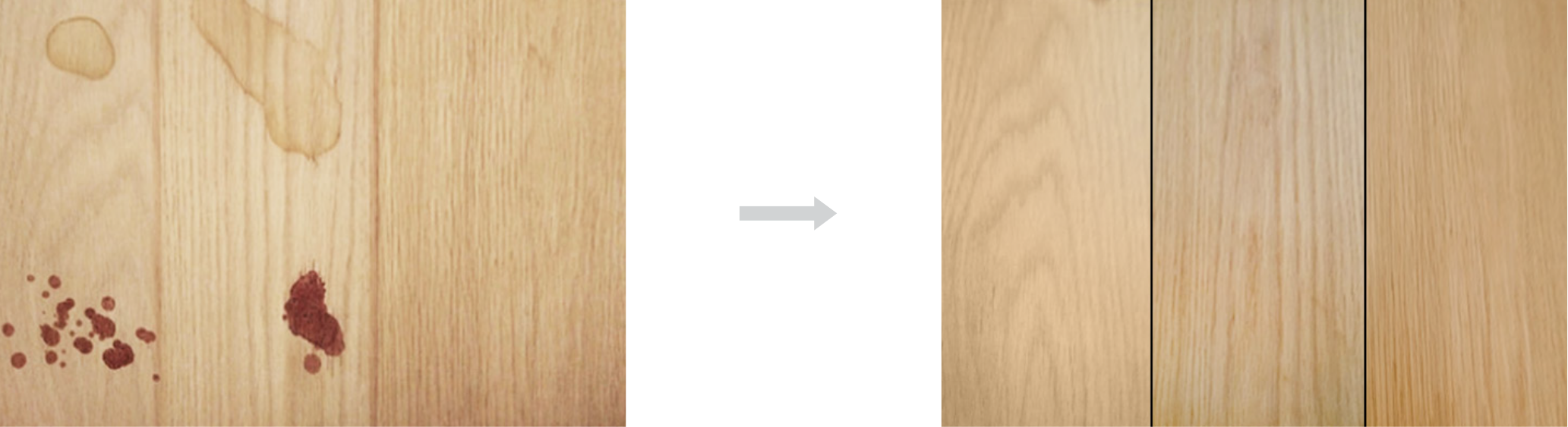

Paint Test - Red Wine & Coffee Spill for 24 Hours, Wiped Clean and Restored

Advantages of HG Water-Based Coating Panels

UV Protection ASTM G154-12a
Prevents coating aging
Cracking / Swelling / Delamination
Not Stain
Flame Resistance Level 1 Calcium Silicate Board
經濟部CNS14705-1, CNS15694
MOI Building Design & Construction Code
Article 1, Section 28 & 88
Repairable
Insect Prevention CNS1349 Sections 6, 2, 4
Bifenthrin Agent
Glusect Agent

Certified by Various Domestic & International Standards
